Gizmo Store

37 Sensors

37 Sensors

Store/CircuitGizmos Parts/Sensors
$19.99 (USDollar)
Sold out
SKU CG37SENSORS
Sold out
Save this product for later
Share this product with your friends
ShareSharePin it
37 Sensors
Store/CircuitGizmos Parts/Sensors
Product Details

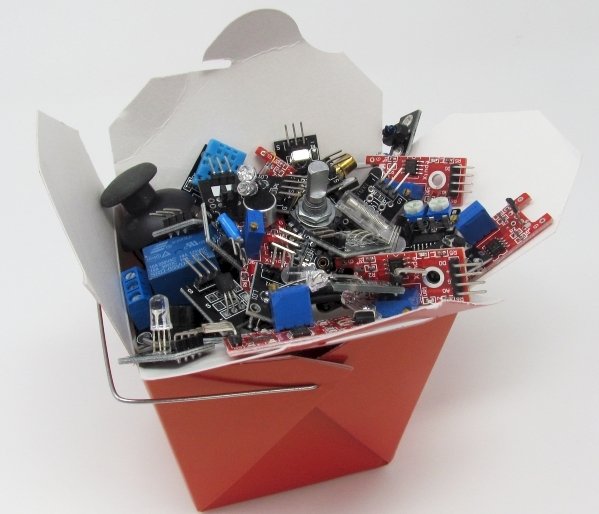

"37 Sensors" is the common name for a number of kits of small electronic modules. Although a large number of these modules are what would be considered "sensors", some are certainly not sensors (things like RGB LEDs and relays).

See this 37 Sensors Site for more information.

Analog Hall-effect

Analog Hall-effect

Analog Hall-effect

Also called: linear hall, magnetic hall, KY035, KY024.

Returns an analog signal based on the intensity of a magnetic field. Module outputs the analog sensor signal, as well as (for some modules) a digital signal that is switched high when the sensor level crosses a preset threshold. The threshold is set via the potentiometer.

Analog Joystick

Analog Joystick

Also called: joystick, mini dual axis joystick, KY023.

A joystick made from two typically 10k potentiometers at right angles to each other. Analog output in both x and y directions. Push knob down for momentary switch.

Analog Temperature

Analog Temperature

Also called: temperature sensor, thermistor, KY013.

A thermistor used for temperature sensing. Analog output.

Ball Switch

Ball Switch

Also called: tilt switch, KY020.

A metal ball that closes contacts when tilted.

Bi-color LED Bi-color LED

Bi-color LED

Also called: two color LED, red/green LED, mini two color, dual light LED, KY011, KY029.

A red and green LED emitter in a single package. Both controlled independently. Can use PWM on each LED to mix yellow-orange colors. Some modules have current limiting resistors, some do not.

Button

Button

Also called: momentary button, key switch, KY004.

Simple pushbutton switch.

Flame

Flame

Also called: fire detector, KY026.

A detector that outputs a digital state based on the presence of a flame or fire. Can be used for fire detection. Module outputs the analog sensor signal, as well as a digital signal that is switched high when the sensor level crosses a preset threshold. The threshold is set via the potentiometer.

Hall-effect Switch

Hall-effect Switch

Also called: magnetic field sensor, KY003.

Detects the presence of a magnetic field. Digital on/off output. Can differentiate between north and south magnetic poles with front or back of the sensor.

Humidity and Temperature

Humidity and Temperature

Also called: humidity sensor, DHT11, KY015.

DHT11 digital (protocol) device that measures humidity and temperature.

IR Receiver

IR Receiver

Also called: infrared receiver, remote receiver, KY022.

Infrared sensor. Will demodulate the signal from a 38kHz carrier.

IR Transmitter

IR Transmitter

Also called: IR emission, infrared transmitter, KY005.

Infrared LED.

LASER

LASER

Also called: laser emit, laser transmitter, laser diode, KY008.

Red LASER.

Light Cup

Light Cup

Also called: magic cup, KY027.

A mercury switch paired with an LED.

Mercury Switch

Mercury Switch

Also called: tilt switch, quicksilver switch, KY017.

A small glass vial with two contacts and a bit of mercury inside. Acts as a tilt switch.

Microphone Microphone

Microphone

Also called: sound sensor, big sound, small sound, microphone big, microphone small, microphone sensor, KY037, KY038.

A module that uses a high sensitivity electret microphone to detect sound. Module outputs the analog sound signal, as well as a digital signal that is switched high when the sound level crosses a preset threshold. The threshold is set via the potentiometer.

Multicolor Flashing LED

Multicolor Flashing LED

Also called: 7 color flash, autoflash LED, polychrome flash, KY034.

An LED that flashes through a sequence of seven multiple colors.

Obstacle Avoidance

Obstacle Avoidance

Also called: infrared avoiding, wall sensor, reflective sensor, KY032.

A phototransistor and infrared LED pair for the detection of an obstacle. Can be used for robotics. The detection distance is about 1/4 of an inch. An enable input to the module enables or disables the circuitry.

Photo Interruptor

Photo Interrupter

Also called: slot sensor, notch sensor, light block sensor, KY010.

An LED and a phototransistor that detects an object in the slot between the LED and detector.

Photoresistor

Photoresistor

Also called: light detector, optosensor, KY018.

A resistor that changes resistance based on light level.

Annunciator

Piezo Driver or Annunciator

Also called: active buzzer, KY006.

Piezo or small speaker that generates a fixed tone. This is a piezo element along with a fixed frequency driver circuit.

Pulse

Pulse

Also called: heartbeat sensor, KY039.

An infrared LED and photodetector/phototransistor pair used to detect pulse/heartbeat through a fingertip.

Reed Switch Reed Switch

Reed Switch

Also called: magnetic spring switch, mini reed switch, KY025.

A switch that closes in the presence of a magnetic field. Module outputs the analog sensor signal, as well as (for some modules) a digital signal that is switched high when the sensor level crosses a preset threshold. The threshold is set via the potentiometer.

RGBLED RGBLED SMT

RGB LED

Also called: full color LED, three color LED, trichromatic LED, KY021, KY016.

LED containing red, green, and blue emitters, each controlled independently. Some modules have current limiting resistors, some do not.

Rotary Encoder

Rotary Encoder

Also called: Incremental encoder, KY040.

Digital output and continuous rotation detection.

Shock and Impulse Shock and Impulse

Shock and Impulse

Also called: tap sensor, knock sensor, shake sensor, percussion sensor, spring switch, vibration sensor, impact sensor, KY002, KY031.

The sensor is designed to act as a switch. Detects tapping/knocking or vibration.

Relay

Single Relay

Also called: relay, one-channel relay, KY019.

A driver circuit and single 5V relay that can control greater voltages/currents. Can make a direct connection to the microprocessor as this board has a relay driver circuit to drive the relay coil. Contacts typically rated for 10 amps.

Speaker

Speaker

Also called: passive buzzer, non-sctive buzzer, piezo speaker, KY012.

Speaker or piezo for sound output.

18B20

Temperature 18B20

Also called: 18B20 one-wire, KY001.

Digital (1-wire communication bus) temperature sensor.

Temperature Threshold

Temperature Threshold

Also called: digital temperature, thermostat module, KY028.

A thermistor module that outputs a digital level based on a temperature threshold. Module outputs the analog sensor signal, as well as a digital signal that is switched high when the sensor level crosses a preset threshold. The threshold is set via the potentiometer.

Touch Sensor

Touch Sensor

Also called: metal touch sensor, KY036.

Touching a contact on this module is detected and results in a changed output. Module outputs the analog sensor signal, as well as a digital signal that is switched high when the sensor level crosses a preset threshold. The threshold is set via the potentiometer.

Tracking

Tracking

Also called: infrared tracking, optical tracking, tracking sensor, line follower, hunt sensor, KY033.

A tracking or “line following” infrared LED and phototransistor module. The sensor is an IR emitter adjacent to an IR receiver. Reflection of the IR signal (an object in front of the sensor) will cause the digital out signal to go low. Detection distance is typically about a half inch. Sensitivity can be adjusted with the potentiometer.

37 Sensor Group By Category:

Light / LED Emitting Bi-color LED – LASER – Multicolor Flashing LED – RGB LED
Sound Microphone – Piezo Driver or Annunciator – Speaker
Man-Machine Interface Analog Joystick – Button – Character LCD – Keypad – Rotary Encoder
Magnetism Analog Hall-effect – Hall-effect Switch – Reed Switch
Environment / Weather Analog Temperature – Flame – Humidity and Temperature – Liquid – Photoresistor – Shock and Impulse – Temperature 18B20 – Temperature Threshold – Tracking
Distance / Position Ball Switch – Light Cup – Mercury Switch – Obstacle Avoidance – Photo Interrupter – Ultrasonic Distance
Relay / Servo / Control Servo – Single Relay
Human Physiology Pulse – Touch Sensor
Communication / IR IR Receiver – IR Transmitter
Radio
